Fire Guardian

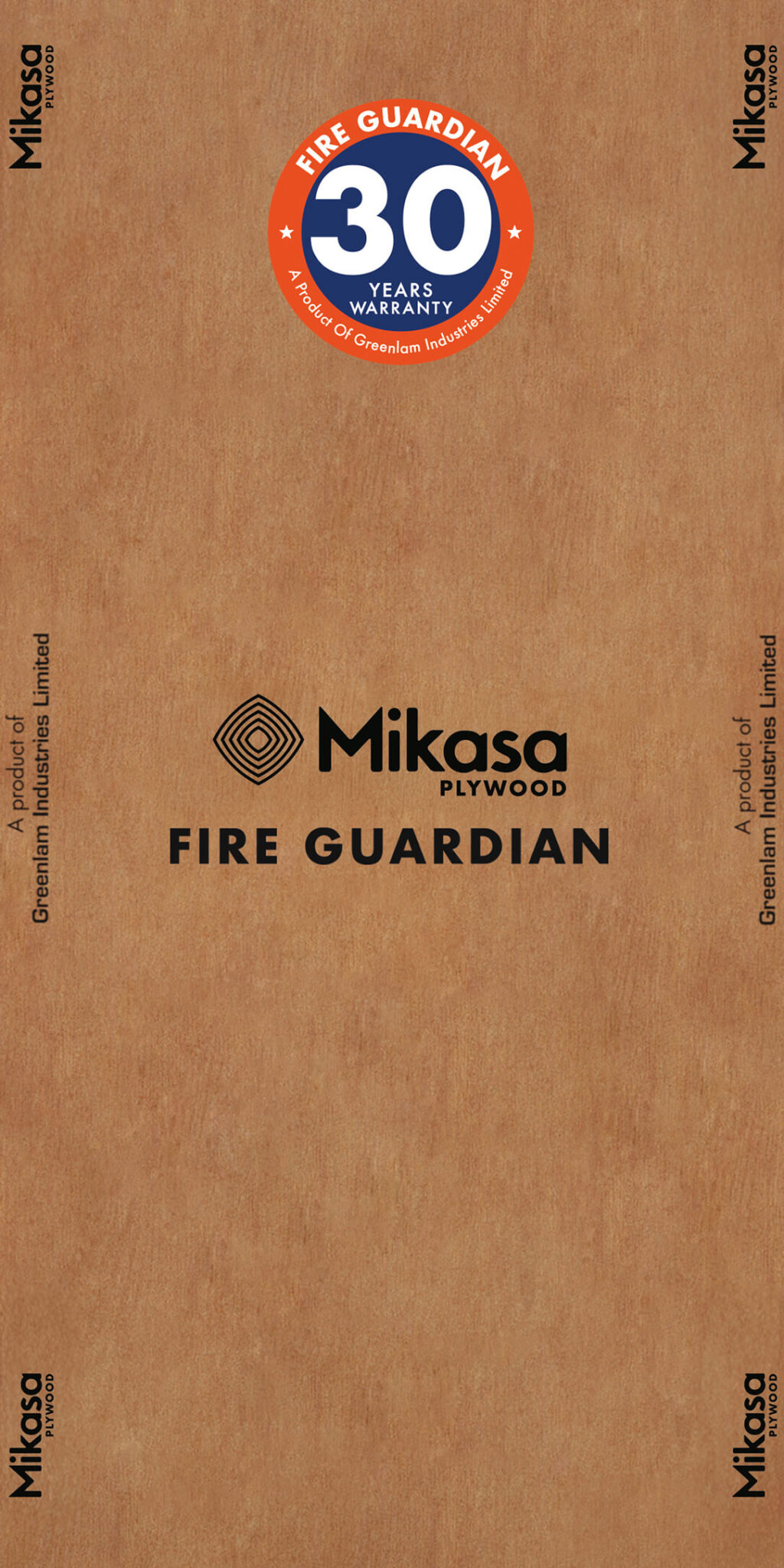

Fire Guardian: The Ultimate Fire-Retardant Plywood
Top-Tier Fire Safety
Fire Guardian is the premier choice for plywood with robust fire-retardant properties, making it ideal for both domestic and commercial settings where fire safety is a priority. Engineered with exceptional fire-retardant characteristics, Fire Guardian ensures the highest level of safety in critical areas.
Enhanced Security
This unique feature provides an additional layer of security and assurance, guaranteeing peace of mind for both residential and commercial users.
30-Year Warranty for Long-Term Assurance
Crafted with meticulous attention to detail, Fire Guardian Plywood meets stringent quality standards. Reinforced by a 30-year warranty, this not only defines the product’s durability but also attests to its long-lasting performance.
Why Choose Fire Guardian for Your Next Project?
Choosing the right fire-rated plywood can make all the difference in an emergency. Here is why Fire Guardian stands out in the industry:
- Advanced Fire-Retardant Properties: Specifically treated to resist ignition and slow the spread of flames, giving occupants critical extra time during an evacuation.
- Residential & Commercial Versatility: Ideal for wall linings, partitions, ceilings, and cabinetry in schools, hospitals, hotels, and private residences.
- Superior Structural Integrity: Unlike some treatments that weaken wood fibers, our process maintains the plywood’s strength, ensuring it remains durable and reliable under pressure.
- Peace of Mind: Safety isn’t just about the build; it’s about the security of knowing your investment and the people inside it are protected by top-tier fire safety standards.
Technical Specification
| Thickness in mm | Number of Plies |
| 4mm | 5 |
| 6mm | 7 |
| 9mm | 9 |
| 12mm | 11 |
| 16mm | 13 |
| 19mm | 15 |
| 25mm | 17 |
| Face Veneer | 0.9mm (Overlaid with two layers of face veneers, with a combined thickness of 0.9mm, using an additional glue line on both the sides) |
| Fire Retardant | Yes, as per IS 5509:2021 |
| Emission Norms | E0 |
| Veneer Treatment | Each veneer is preservative treated with Vacuum Pressure Technology |
| Density approx in kg per CBM | 775 |
| Nail holding Strength (kg) | ≥ 150 |
| Screw Holding Strength (kg) | ≥ 275 |
| Impact Resistance | Excellent Strength & dimensional stability due to higher number of plies and use of select premium hardwood |
| 6X Press (Six times pressed) | Yes |
| 100% Composed Veneer | Machine composed core |
| Adhesives of Plies | |
| Glue Shear Strength (N) | ≥ 1600 |
| Visual Inspection | Excellent |
| Moisture Content (%) | 5.0-15.0 |
| Sp. Gravity (g/cc) | ≥ 0.77 |
| Water Absorption (%) | < 5 |
| Static Bending Strength (N/mm2) | |
| Modulus of Rupture (MOR): | |
| Along the grain | ≥ 60 |
| Across the grain | ≥ 45 |
| Modulus of Elasticity (MOE): | |
| Along the grain | ≥ 8000 |
| Across the grain | ≥ 5200 |
| Adhesive | Phenolic adhesive |
| Calibration | 100% with Precision Calibration Technology |
